ActiveTarget 2 Live Sonar

More Information
ActiveTarget 2 - Sonar Module
Electrical
Electrical

Power supply

12/24 V DC

Operating voltage

10.8 V DC - 31.2 V DC

Current drain (maximum)

1.5A at 13.8 V

Reverse polarity protection

Yes

Fuse rating

3A

Physical
Physical

Weight

1.86 kg (4.12 lbs)





Dimensions

TopSide

Environmental
Environmental

Operating temperature range

-15°C to +55°C (5°F to 131°F)

IP class

IP67

Storage temperature

-30°C to +70°C (-22°F to +158°F)

ActiveTarget 2 - Transducer
Physical
Physical

Weight

1.21 kg (2.26 lbs)

Cable length

7.62 m (25 ft.)

Mounting options

Trolling motor shaft
Trolling motor lower unit
Transom mount (sold separately)
Scout wide mount (sold separately)

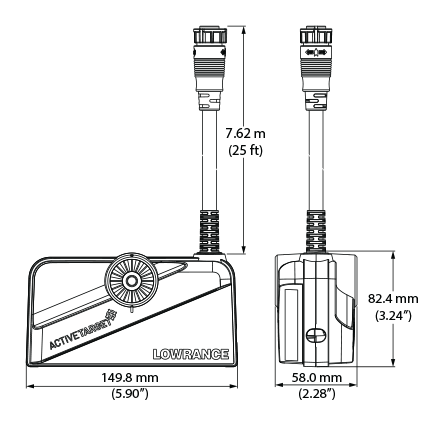

Dimensions

Dimensions

Environmental
Environmental

Storage temperature

-30°C to +70°C (-22°F to +158°F)

Water temperature for operation

0°C to +35°C (32°F to +95°F)
