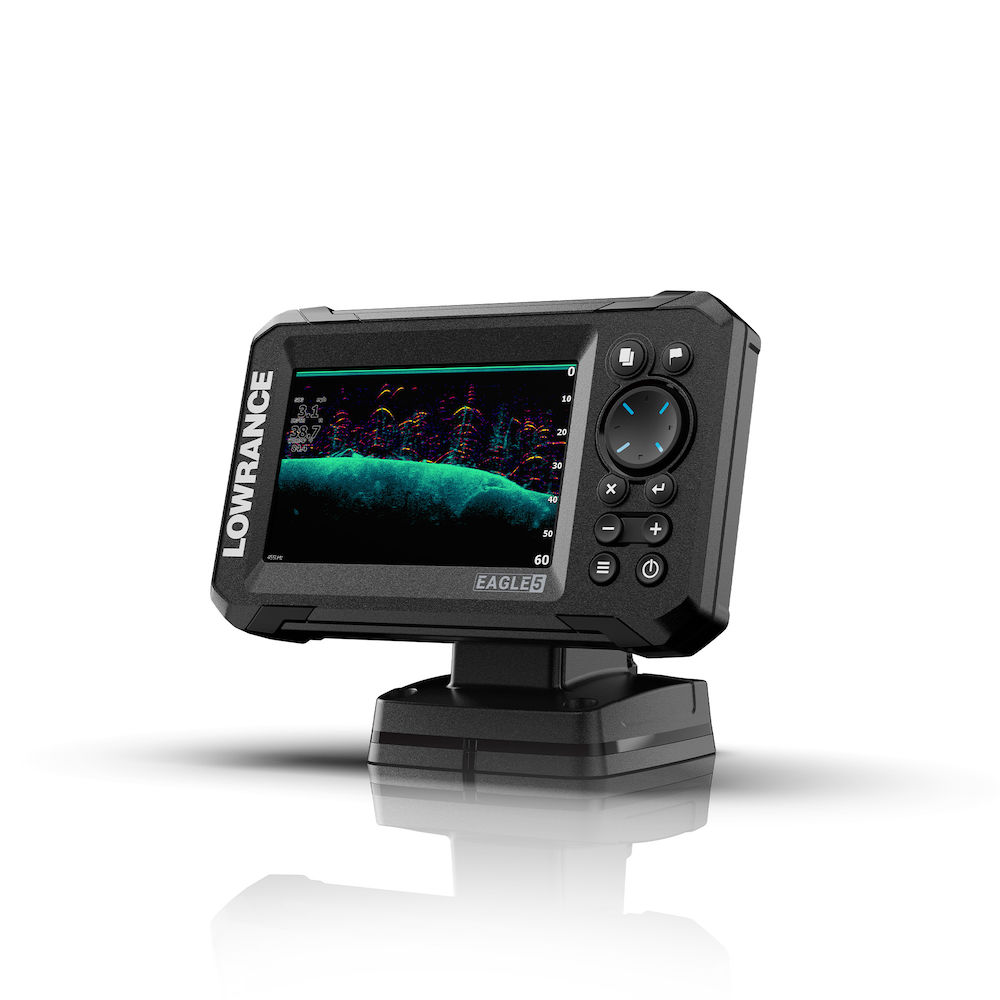

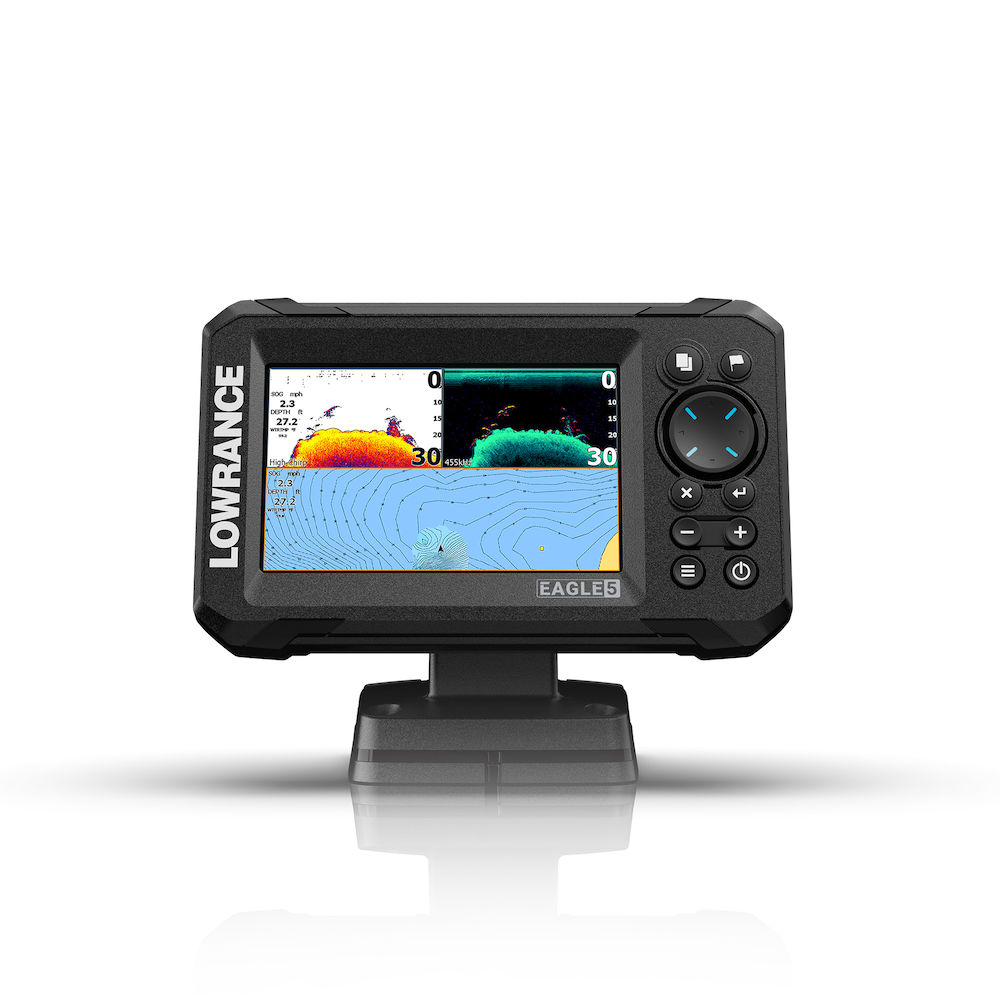

Eagle 5 with SplitShot™ HD Transducer and AUS/NZ Enhanced Embedded Charts

SKU: 000-16113-001

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
$699.98

Eagle logo

Eagle logo

Easy to use sonar

Eagle® brings the pedigree of enhanced Lowrance® sonar to our most accessible and easy to use fishfinder yet.

New SplitShot HD Transducer

Get the best underwater views below the boat with SplitShot™ HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

CHIRP Sonar.png

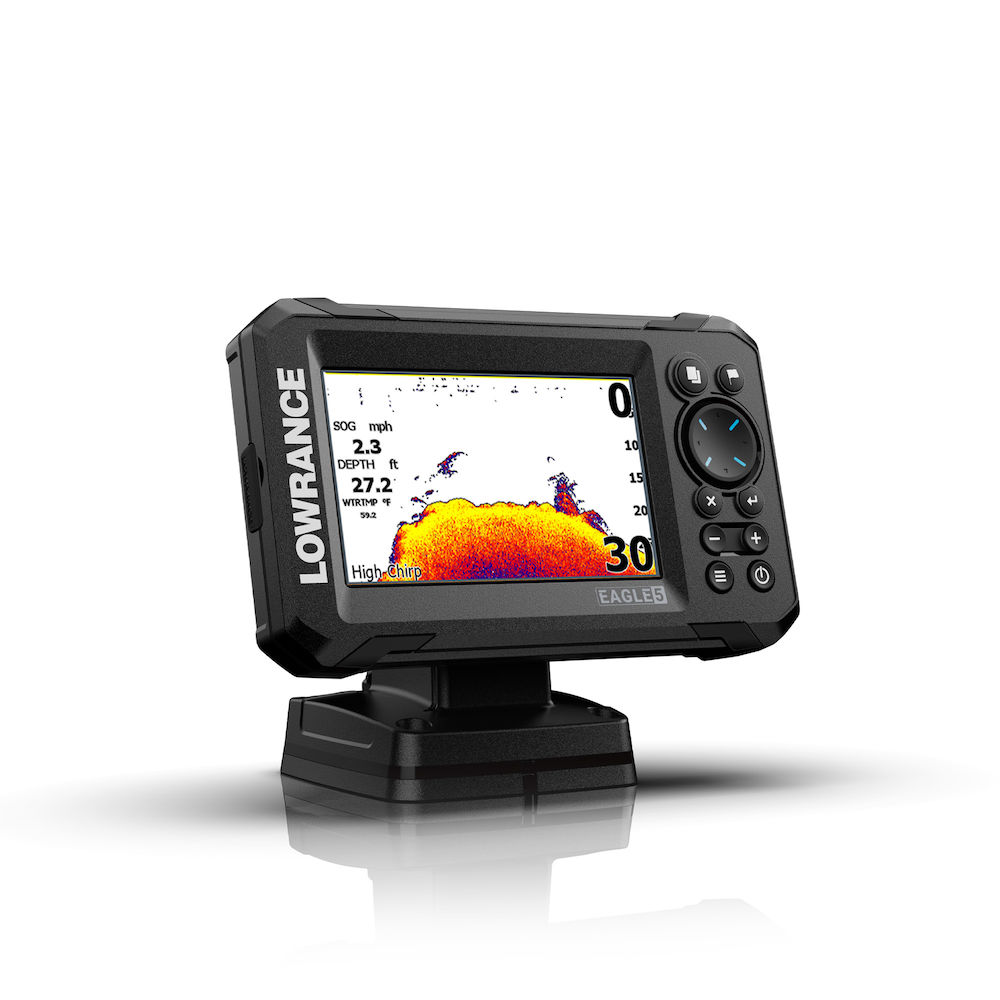

CHIRP Sonar

CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.

DownScan Imaging.png

DownScan Imaging™

DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.

FishReveal

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

FishReveal Desktop.png
Autotuning Sonar Desktop.png

Autotuning Sonar

Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

FishReveal Desktop.png

FishReveal

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

Autotuning Sonar Desktop.png

Autotuning Sonar

Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

Detailed charting

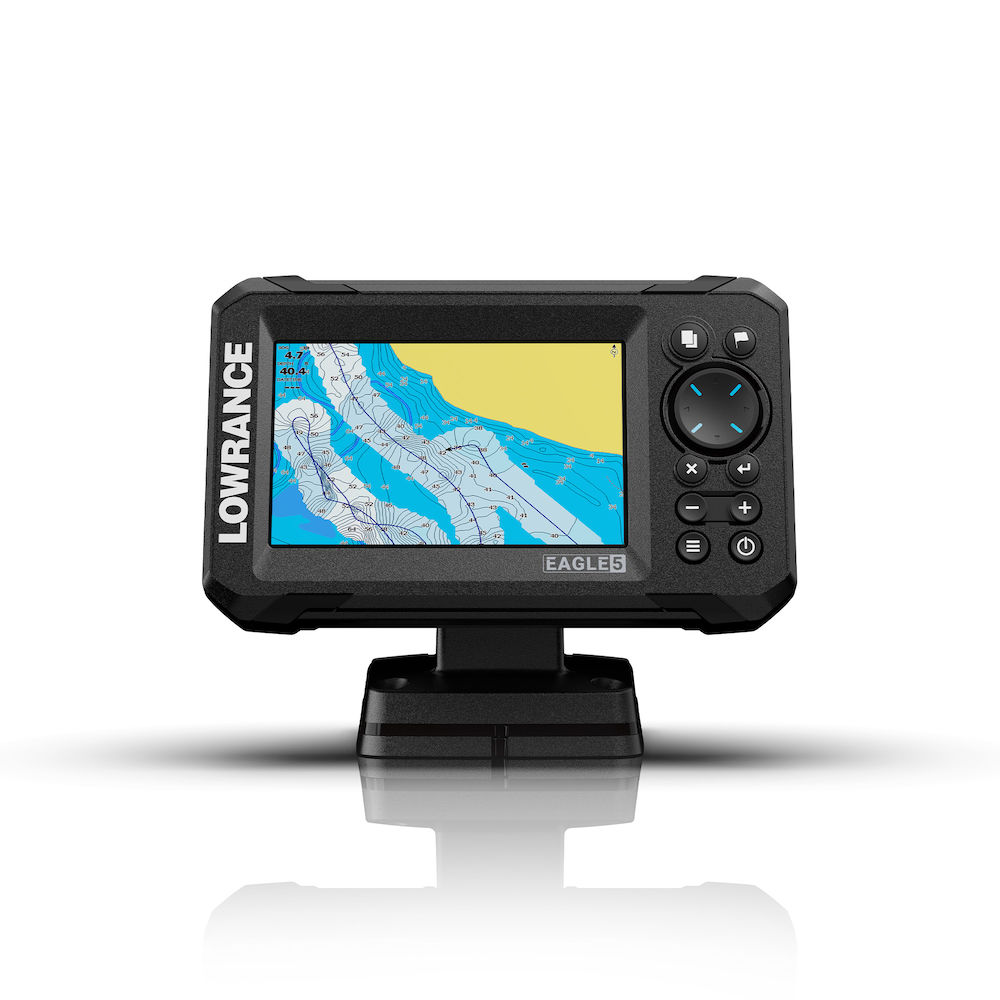

C-MAP® Embedded Charts for New Zealand and Australia

Spend more time fishing and less time searching, thanks to the high resolution of C-MAP® Embedded inland and coastal charts for New Zealand and Australia. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.

DISCOVER OnBoard Desktop.png
Genesis Live Desktop.png

Genesis Live

Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

DISCOVER OnBoard Desktop.png

C-MAP® Embedded Charts for New Zealand and Australia

Spend more time fishing and less time searching, thanks to the high resolution of C-MAP® Embedded inland and coastal charts for New Zealand and Australia. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.

Genesis Live Desktop.png

Genesis Live

Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

Designed for fishing

IPS Screen.jpg

New IPS screens

See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

Connector System.jpg

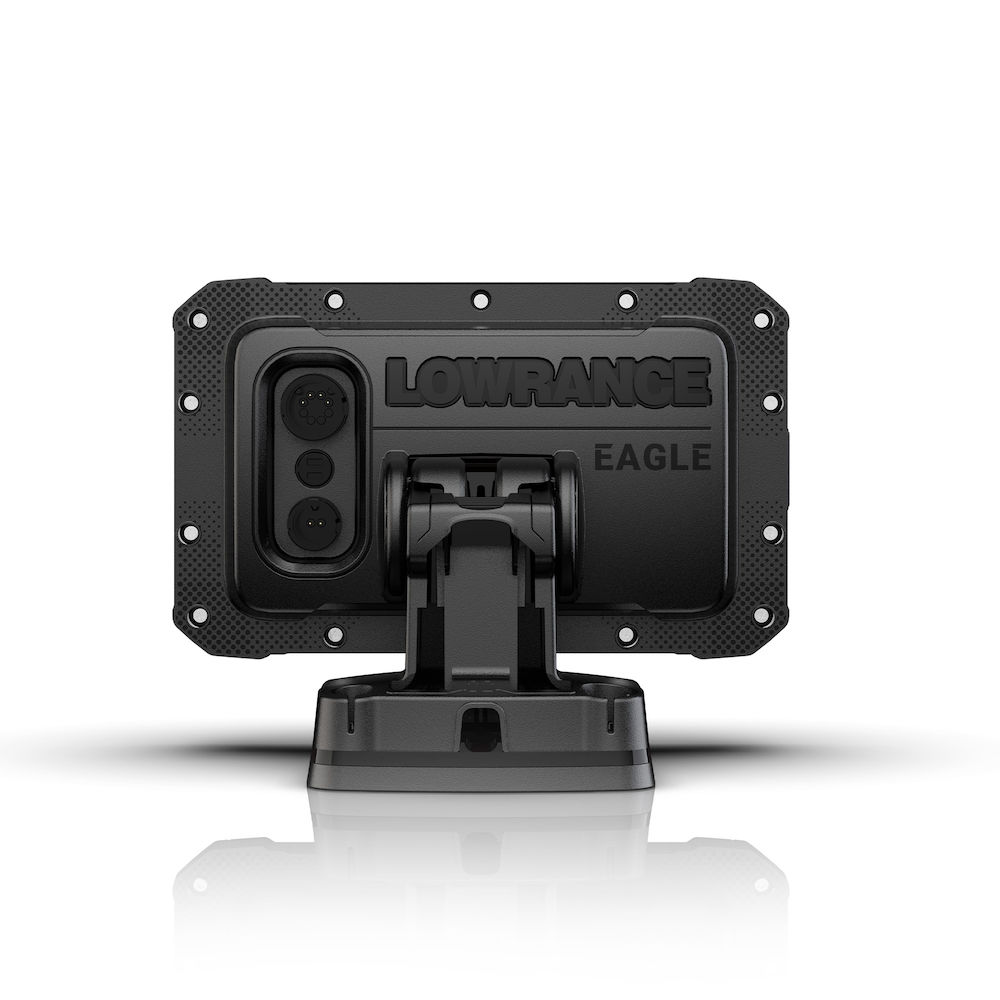

New connector system

Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.


One-year warranty

Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.

Which eagle is right for you?



Eagle with
Bullet Skimmer Transducer

Eagle with
SplitShot™ HD Transducer

Eagle with TripleShot™ HD Transducer

Screen size options
Screen size options

4"

5"

7", 9"

Single frequency sonar
Single frequency sonar
CHIRP sonar
CHIRP sonar

DownScan Imaging™
DownScan Imaging™

SideScan Imaging
SideScan Imaging

FishReveal™
FishReveal™

GPS mapping
GPS mapping

Charts
Charts

SD card slot
SD card slot


What's in the box?

  • EAGLE SplitShot™ Transducer

Specifications

Display
Backlight Color
Pure white LED
Display Resolution
800 x 480
Display Size
5 inches
Screen Brightness
1000 NITS
Viewing Angles
80° top/bottom, 80° left/right
Connectivity
SD Card Storage
1 slot (microSD® 32 GB maximum)
Cartography
Charts supported
C-MAP® DISCOVER™.
Electrical
Power Consumption max
280 mA @ 12 V DC with backlight on full
Power Consumption min
190 mA @ 12 V DC with backlight off
Power Consumption typical
280 mA @ 12 V DC with backlight on full
Recommended Fuse Rating
3A
Supply Voltage
12v DC (10.8-17VDC)
Environment
Humidity
60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range
5°F to 131°F (-15°C to 55°C )
Storage Temperature Range
4°F to 140°F (-20°C to 60°C )
Waterproofrating
IPX7 with card door closed
GPS
Correction
SBAS
Time to First Fix
45s
MFD
Cartography included
C-MAP Embedded Charts for New Zealand & Australia Inland and Coastal
Waypoints, Routes, Tracks
3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe
12" (300mm)
Dimensions W x H x D
182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 (4.35")
Mounting Type
Gimbal bracket or dash mount
Weight
0.46 kg (1.01 lb)
Other
Interface
Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period
1 Year + 4 additional years of upgrade options totaling 5 years
