HDS Carbon 7 TotalScan

Artikelnummer: 000-13679-001

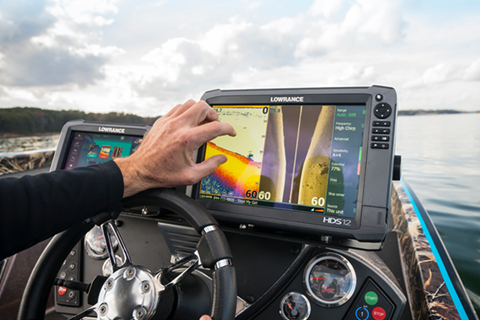

HDS Carbon 7 är perfekt för sportfiskare som vill ha högklassiga funktioner men har begränsat konsolutrymme. Den är utrustad med en högupplöst 7-tums SolarMAX HD-display.
SEK 17.990 kr Inkl. Moms

Huvudfunktioner

  • Finns i 4 skärmstorlekar: 7, 9, 12 och 16 tum.

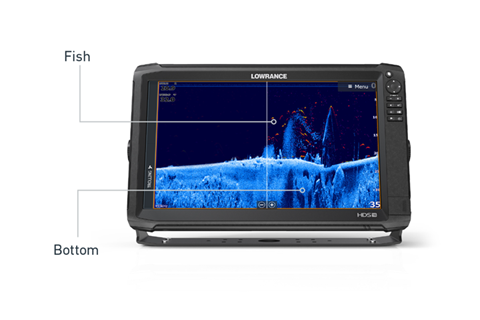

  • FishReveal smart målvisning
  • Inbyggt stöd för StructureScan® 3D
  • Förbättrad SideScan- och DownScan Imaging™-kapacitet
  • Redo för StructureScan® HD och TotalScan™ allt-i-ett-givare

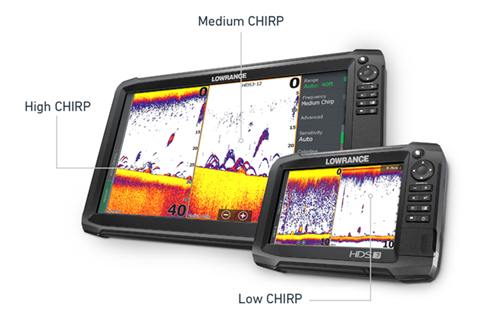

  • Inbyggd Lowrance CHIRP
  • Trådlös anslutning
  • NMEA 2000®- och Ethernet-anslutning
  • Uppgraderingsalternativ för sjökort
  • SmartSteer™-kontroll över utombordspilot och MotorGuide® Xi5-elmotor
  • Kompatibel med Power-Pole®-ankare för grunt vatten
  • Redo för Point-1-antenn
  • SonicHub® 2-kompatibel
  • Klar för Broadband Radar™
  • Mercury® VesselView® Link-kompatibel

Vad innehåller paketet?

  • HDS Carbon 7 Ram och SD-kortlucka
  • PC-30-RS422 Strömkabel för HDS-serien
  • Säkring och säkringshållare
  • HDS-7 Gen3/Gen2 Touch/HOOK/Elite 7 tum skärmfäste och rattar
  • TotalScan Skimmer medelhög/hög 455/800
  • HDS-7 / gen3 solskydd
  • HDS-anslutningslock

Specifikationer

Display
Bakgrundsbelysningens färg
Pure White LED
Skärmens ljusstyrka
1500 Nits
Skärmupplösning
1024 x 600
Visningsvinklar
85° top/bottom, 85° left/right
Anslutningar
Anslutningsbarhet till dator
None
Bluetooth
Integrated
Ethernet-portar
1x 100 Mbit, 6 max MFD's on a network
N2K PGN
Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183-meningar som stöds
TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
NMEA 2000-anslutning
1x Micro-C
SD-kortlagring
2 micro SD cards up to 32GB
Varans anslutningsbarhet Wi Fi
Internal 802.11b/g/n and Compatible with WiFi-1 Module
Video
Output: NoInput: Composite video RCA - singlechannel via optional adaptor
Sjökort
Sjökort som stöds
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Autopilot
Manövrer, girmönster
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Styrlägen
Course, Heading, Waypoint, Power Steer
Elektrisk information
Rekommenderad säkringsklass
5A
Spänning
12 v DC (10.8-17VDC)
Strömförbrukning max.
2.3A @ 13VDC with Full Backlight, Sonar on
Strömförbrukning min.
1.5A @ 13VDC with Full Backlight, Sonar on
Strömförbrukning typisk
1.5A @ 13VDC withwith Full Backlight, Sonar on
Miljö
Arbetstemperaturintervall
5°F to 131°F (-15°C to 55°C )
Förvaringstemperatur, intervall
-40°F to 185°F (-40°C to 85°C )
Luftfuktighet
60°C, 95% relative humidity (RH) for 18 hours
Stötvibration
100,000 cycles of 20 G
Vattentät, klassning
IPX7 with card door closed
GPS
GPS-mottagarkanaler
16
Korrigering
DGPS, WAAS
Positionsnoggrannhet
20m RMS
Tid till första fix
30s
Uppdateringshastighet
10 Hz
MFD-Multifunktionsdisplay
AIS
AIS Chart and Radar overlay. Target vessel details.
Autopilot
Outboard Pilot and MotorGuide Xi5 Trolling Motor *requires Motorguide PinPoint Gateway
Digital växling
Czone
Ekolodskompatibilitet
Integrated: CHIRP, Broadband, DownScan & StructureScan.Compatible with: SonarHub, StructureScan, StructureScan3D
GPS
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Intern lagring
8.0 GB Internal
Kartografi ingår
C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Multimedia
SonicHub, SonicHub2, FusionLink products.
Waypoints, rutter, spår
3000 Waypoints, 100 Routes and 100 Trails with up to 10,000 points per trail
Väder
SiriusXM via WM-3 (USA only)
Mått
Kompassäker
12" (300mm)
Monteringstyp
Gimbal Bracket or Dash Flush Mount
Mått H x B x D
5.76in (146.3mm) x 8.48in (215.4mm) x 3.47in (88.2mm)
Vikt
3.04lb (1.38kg)
Annat
Garantiperiod
2 Year + part of the 5 yearupgrade program
Gränssnitt
Full Multi-touch touchscreen and Keypad; 8-way directional keypad; ZOOM +/-, EXIT,ENTER,MENU,SWAP PANEL,WPT,LIGHT/POWER
Språk
Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
