Elite-7 Ti - 无传感器 Nav+ AUS/NZ

SKU: 000-12704-001

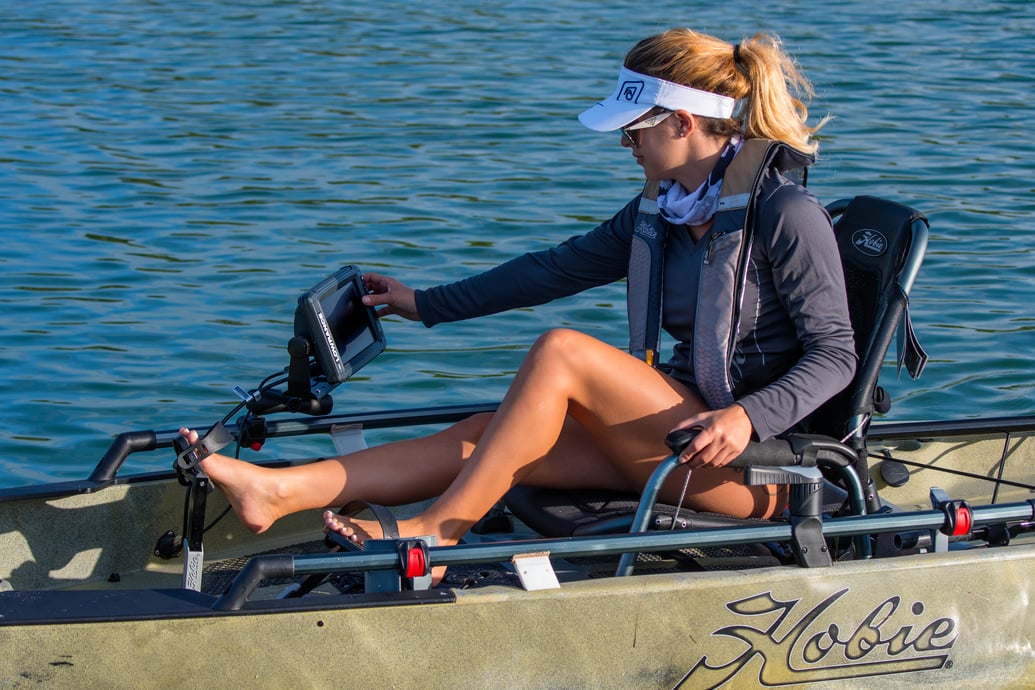

Elite-7 Ti 鱼探仪/海图仪配备了足以作为独立显示器使用的 7 英寸高分辨率触摸屏,而紧凑的外形设计又非常适合控制台空间有限的船只。

主要特点

  • 现有 5 英寸、7 英寸、9 英寸和 12 英寸屏幕尺寸可供选择
  • 易于使用的高分辨率触摸屏显示器
  • StructureScan® HD 可与 TotalScan™ 和 HDI 传感器配合使用
  • 适用于 Xi5 拖拽电机的 SmartSteer™ 控制(仅限 12、9、7 型号)
  • 集成无线和 Bluetooth® 连接
  • NMEA 2000® 发动机支持(不包括 Elite-5 Ti)

盒子里有什么?

规格

显示
背景灯颜色
Pure White LED
屏幕亮度
1200 nits
视角
80° top/bottom, 85° left/right
显示分辨率
800x480
连通性
N2K PG Ns
Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183句型支持
TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
SD卡内存
1 micro SD card up to 32GB
蓝牙
Integrated
联通PC
None
链接NMEA 2000
1x Micro-C
视频
None
项目连接 Wi Fi
Integrated
以太网端口
None
绘图
支持海图
Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
认可
批准合规性
FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
电力
典型能量功耗
0.9A @ 13VDC with backlight on full
电源电压
12v DC (10.8-17VDC)
建议的保险丝额定值
3A
最大能量功耗
0.9A @ 13VDC with backlight on full
最小能量功耗
0.9A @ 13VDC with backlight on full
环境
冲击振动
100,000 cycles of 20 G
储存温度范围
-40°F to 185°F (-40°C to 85°C )
防水等级
IPX7 with card door closed
工作温度范围
5°F to 131°F (-15°C to 55°C )
湿度
60°C, 95% relative humidity (RH) for 18 hours
全球定位系统
GPS接收器频道
16
第一次修复的时间
30s
更新率
10 Hz
位置精度
20m RMS
修正
DGPS, WAAS
多功能显示器
AIS
AIS Chart overlay. Target vessel details.
GPS
10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
多媒体
None
兼容声纳
Integrated: CHIRP, Broadband, DownScan & StructureScan (Cannot do Simultaneous CHIRP & StructureScan)
路标,路线,追踪
3000 Waypoints, 100 Routes and 100 Trails with up to 10,000 points per trail
内存
None
数字切换
None
天气
None
已包括海图
Enhanced Elite basemap, with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
自动舵
MotorGuide Xi5 Trolling Motor *requires Motorguide PinPoint Gateway
基本信息
安装类型
Gimbal Bracket or Dash Flush Mount
罗经保护罩
12" (300mm)
重量
2.20 lbs (1.00 kg)
其它
界面
Touchscreen and Zoom +/-, MOB, Pages, Waypoint,Light/Power
语言
Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
质保期
5 Years Total1 Year Full Warranty Replace4 Years InService Upgrade
